SORGENTE CATALOG
Discover the wonder of Sorgente systems
Sorgente Bolle dispenses mixed running water and instant boiling water at 99°C, saving time in all kitchen tasks that require water at this temperature. The high-efficiency water heater is combined with the Gioia filter: it improves the water quality while maintaining the proper mineral balance and reducing the possible presence of heavy metals that are highly harmful to the organism.
Why choose Sorgente Bolle?
Sorgente Bolle is a real help in day-to-day domestic life: to cook a plate of spaghetti in record time, to make a cup of tea or herbal tea on the fly after a cold day outdoors, to blanch vegetables while retaining their colour and organoleptic properties, to sanitize a baby's bottle, and much more…
I have a child at home: is the mixer safe?
Sorgente Bolle is available in the electronic or mechanical version: in the electronic models, the boiling water dispensing (indicated by the red LED ring lighting up) begins and remains active as long as you press the knob, stopping when it is released to avoid accidental contact with high temperature water. The mixer features the “Pot filler” function, activated by a conscious gesture such as pressing the knob twice, which allows continuous hands-free boiling water dispensing (timed up to a maximum of 60 seconds, i.e. approximately 2.2 litres). Safety is at the highest levels in the mechanical version too: the "Child-lock" system (patented by Nobili) allows the device to be operated only through a combined extraction and rotation movement, making the task extremely complicated for a child. The mechanical versions also feature the “Pot filler” function, which allows continuous hands-free boiling water dispensing.
Is it possible to temporarily turn off the boiler while keeping the other functions active?
No, since it is an All-in-One system, it is not possible to turn off the boiler alone.
What are the minimum installation requirements?
Sorgente Bolle does not have any special minimum installation requirements. The boiler, generally installed under the sink, has small dimensions and is compatible with any type of cabinet.
What type of filtration does the system use?
In addition to ensuring maximum protection of the boiler from corrosion and limescale build-up, the Gioia filter improves the taste of the water: through its 5 filtration phases it reduces the presence of heavy metals and eliminates any harmful substances, including some microplastics, maintaining a correct mineral balance and a neutral pH of the water.
What is the capacity of the supplied filter?
The Gioia filter has a capacity of 1,700 litres. However, replacement once a year is recommended.
What is included in the kit?
In addition to the multifunction mixer, the kit includes the filter, the filter support bracket, the boiler, the safety valve and the hydraulic unit (in the electronic model), as well as the necessary hoses and connections for quick and easy installation.
Where can I buy a replacement filter?
Scan the QR code on the filter.
Can I use other filters with the system?
Yes, you can use other filters but you will also need to change the support bracket as the one provided is only compatible with Nobili filters.
What kind of warranty does the system come with?
The standard Nobili warranty applies to all the taps and the mixer. For the device under the sink, however, the warranty is 2 years from the date of purchase.
What is the energy consumption of the system?
Consumption may vary according to individual use. The maximum consumption is indicated in the system product sheet.
MECHANICAL VERSION

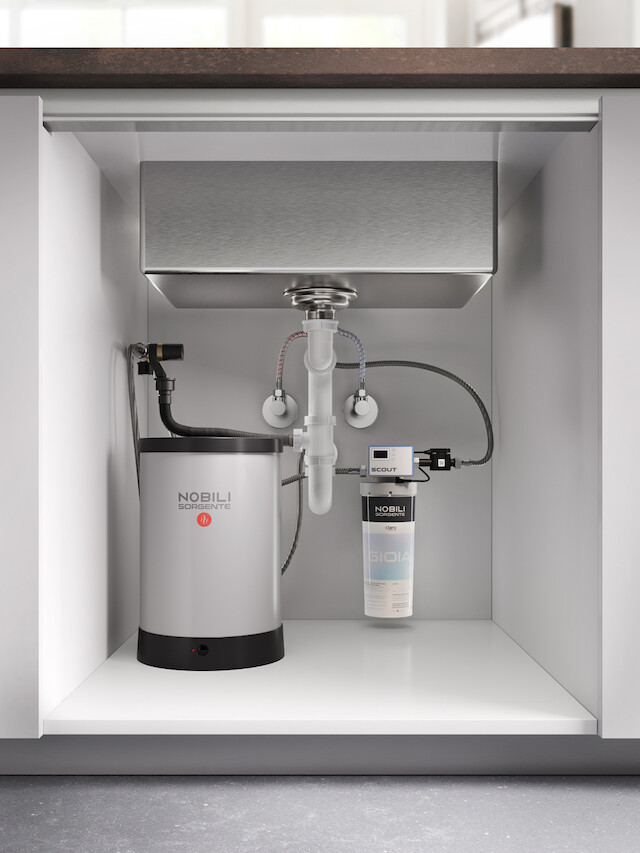

The entire system takes up minimal space and leaves all the necessary space inside the cabinet to store any tools and accessories. In the image above and in the dimensioned drawing below, the configuration of the mechanical version, with the addition of the filter capacity control monitor available as an optional, installed on the filter head.
MECHANICAL OR ELECTRONIC?
Identical performances (mixed running water and instant boiling filtered water at 99 °C) but different operating modes: Sorgente Bolle is available in a mechanical version (the “Child-lock” system covered by Nobili patent allows the device to be activated only through a movement combined extraction and rotation, making the operation very complicated for a child) or electronic (the dispensing of boiling water starts and remains active by pressing the knob, stopping when it is released to avoid accidental contact with high temperature water).
ELECTRONIC VERSION

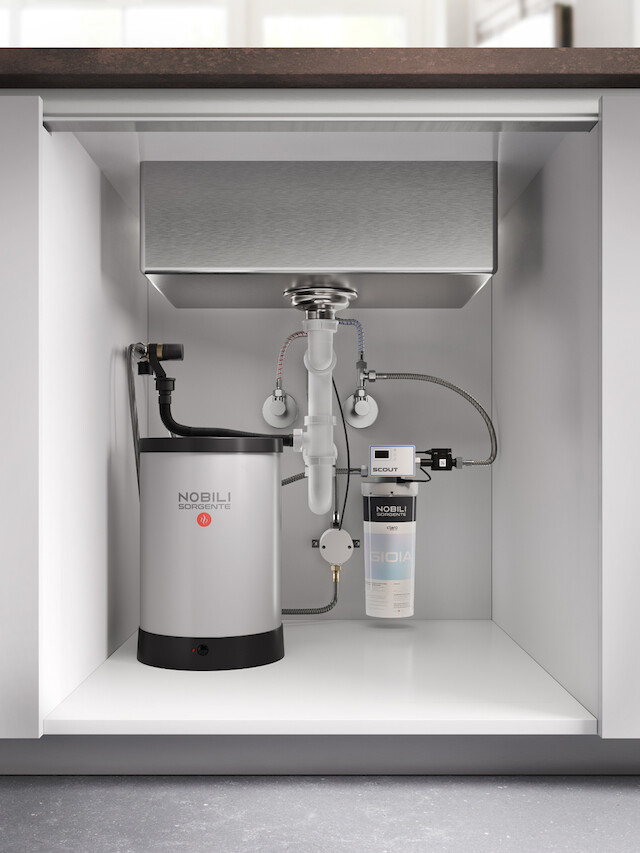

In the image above and in the dimensioned drawing below, the configuration of the electronic version which, compared to the mechanical variant, sees the addition of an electronic connection box positioned between the boiler and the Gioia filter: the minimal overall dimensions occupied by the system leave space inside the cabinet to store any tools and accessories. The filter capacity control monitor, available as an optional, is installed on the filter head.
